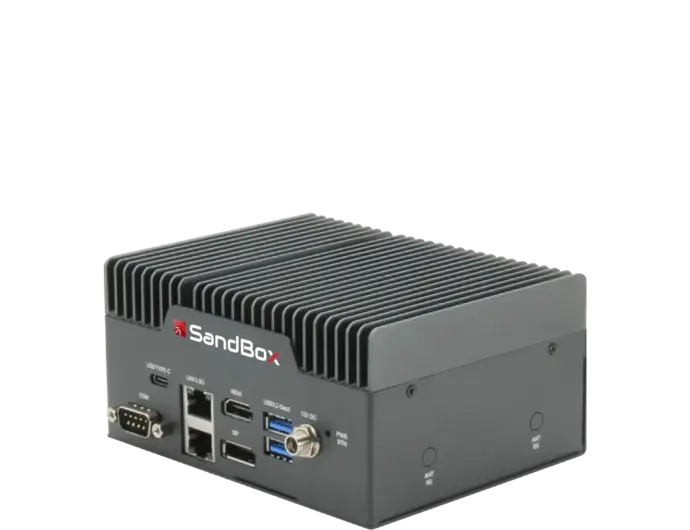

SANDBOX RED EDGE

• • System:
    • SandBoxOS, Software Center, and OTA
  • Communication:
    • EMQX MQTT or Mosquitto or TBMQ, Kafka, and RabbitMQ
  • Monitoring:
    • cAdvisor, Grafana, and Prometheus
  • DataBase / QL:
    • GraphQL, PostgreSQL, and FerretDB
  • IoT:
    • Sensor and Actuator Connectors, IoTool, and ThingsBoard
  • Automation /Dev:
    • Node-RED
  • AI:
    • Jupyter Notebook and TensorFlow
  • Tools:
    • Certificates, Code Server, File Browser, KeyCloak, Proxy Manager, Portainer, and Terminal
  • Optional:
    • OPC-UA and SparkPlug-B
  • More…

General Specifications:

• Processor: Intel® Processor N97
• Graphics: Intel® UHD Graphics Gen 12
• VPU: Optional (via M.2 2280)
• Memory: 4GB
• Storage: eMMC 32GB
• Expansion Slot: M.2 2280 M key (PCIe Gen 3 x2, USB2.0)
• FPGA: Lattice
• BIOS: UEFI
• Real-Time Clock (RTC): Yes
• Wake-on-LAN (WoL): Yes
• Watchdog Timer: Yes
• PXE: Yes
• TPM: TPM2.0 on board
• Dimensions: 5.27” x 4.13” x 2.56” (134 × 105 x 65mm)

Operating System:

• SandBoxOS

Display and I/O Ports:

• Display Ports: 1 x HDMI 2.0b, 1 x DP 1.2, and 1 x DP 1.4a via USB Type C
• USB Ports: 2 x USB 2.0 via 10-pin wafer, 2 x USB 3.2 Gen 2 Type A, and 1 x USB 3.2 Gen 2 Type C
• Audio Ports: 1 x Audio Jack (Mic-in, Line out)
• Serial Port: 2 x RS-232/422/485
• Expansion Slots: 1 x M.2 2230 E key (CNVI, PCIe Gen 3 x1, USB2.0), 1 x M.2 3052 B Key (USB3.2 Gen 2 only) with Nano SIM slot, and GPIO: 1 x 40-pin GPIO

Connectivity:

• Ethernet: 2 x 2.5GbE (Intel® i226IT)
• Wi-Fi: Optional (via M.2 2230)
• Bluetooth: Optional (via M.2 2230)
• LTE / 4G / 5G: Optional (via M.2 3052)

Power:

• Power Requirement: 12V DC-in
• Power Supply Type: AT/ATX mode
• Power Consumption (Typical): Depends on the processor model

Environmental:

• Cooling: Passive cooling (fanless)
• Operating Temperature: 32°F ~ 140°F (0°C ~ 60°C)
• Storage Temperature: -40°F ~ 176°F (-40°C ~ 80°C)
• MTBF (Hours): 422,053

Package:

• Net Weight: 950 g
• Gross Weight: 1.3 kg
• Package Dimension (L x W x H): 157 x 147 x 68 mm
• HS Code: 8473302000
• Country of Origin: Taiwan
• Longevity: 2038
